kvr2: Educational Tool for Exploring \(R^2\) Definitions

CRAN status

The kvr2 package provides functions to calculate nine types of coefficients of determination (\(R^2\)) as classified by Kvalseth (1985).

Overview

The coefficient of determination, \(R^2\), is one of the most common metrics for assessing model fit. However, its mathematical definition is not unique. While various formulas yield identical results in standard linear regression with an intercept, they can diverge significantly—sometimes producing negative values or values exceeding 1—when applied to:

Scope and Compatibility

This package is specifically designed for models that can be represented as lm objects in R. This includes:

Note: This package does not support general non-linear least squares (nls) or other complex non-linear modeling frameworks. It focuses on the mathematical sensitivity of \(R^2\) within the context of linear estimation and its common transformations.

Educational Purpose: Demystifying

The primary goal of kvr2 is not to provide a definitive “best” for every scenario, but to serve as an educational and diagnostic resource. Many users rely on the single value provided by standard software, but as this package demonstrates, that value is sensitive to the underlying mathematical definition and the software’s internal defaults.

Through this package, users can:

Formulas Included

The package calculates nine indices based on Kvalseth (1985):


Installation

You can install the released version of kvr2 from CRAN with:

install.packages("kvr2")

You can install the development version of kvr2 like so:

remotes::install_github("indenkun/kvr2")

Usage and Examples

kvr2 provides a simple way to observe how different \(R^2\) definitions behave across various model specifications.

1. Basic Usage: Consistency and Divergence

In standard linear models with an intercept, most \(R^2\) definitions yield identical results. However, they can diverge significantly in models without an intercept or in power regression models.

library(kvr2)

# Dataset from Kvalseth (1985)
df1 <- data.frame(x = 1:6, y = c(15, 37, 52, 59, 83, 92))

# Case A: Linear regression with intercept (Values are consistent)
model_int <- lm(y ~ x, data = df1)
r2(model_int)
#> R2_1 :  0.9808
#> R2_2 :  0.9808
#> R2_3 :  0.9808
#> R2_4 :  0.9808
#> R2_5 :  0.9808
#> R2_6 :  0.9808
#> R2_7 :  0.9966
#> R2_8 :  0.9966
#> R2_9 :  0.9778

# Case B: Linear regression without intercept (Values diverge)
model_no_int <- lm(y ~ x - 1, data = df1)
results <- r2(model_no_int)
results
#> R2_1 :  0.9777
#> R2_2 :  1.0836
#> R2_3 :  1.0830
#> R2_4 :  0.9783
#> R2_5 :  0.9808
#> R2_6 :  0.9808
#> R2_7 :  0.9961
#> R2_8 :  0.9961
#> R2_9 :  0.9717

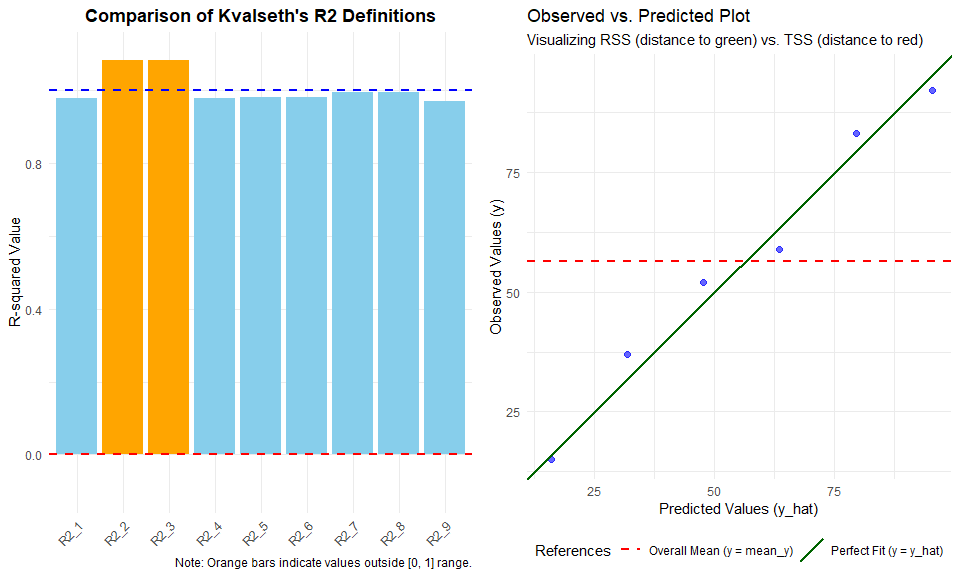

Observation: In Case B, notice that \(R^2_2\) and \(R^2_3\) exceed 1.0. This demonstrates why choosing the correct definition is critical for models without an intercept.

2. Accessing Calculated Values

The r2() function returns a list object. While the output is formatted for readability, you can easily access individual values for further analysis or reporting.

# Accessing specific R2 values from the result object
results$r2_1
#>      r2_1
#> 0.9776853

results$r2_9
#>      r2_9
#> 0.9717156

# You can also use it in your custom functions or data frames
my_val <- results$r2_1

3. Model Comparison with Error Metrics

To complement \(R^2\) analysis, use comp_fit() to evaluate models via standard error metrics such as RMSE, MAE, and MSE.

comp_fit(model_no_int)
#> RMES :  3.9008
#> MAE :  3.6520
#> MSE :  18.2593

For details, refer to the documentation for each function.

References

Kvalseth, T. O. (1985). Cautionary Note about \(R^2\). The American Statistician, 39(4), 279-285. DOI: 10.1080/00031305.1985.10479448
