gp3.c File Reference

OGSF library - loading point sets (lower level functions) More...

#include <stdlib.h>
#include <grass/gis.h>
#include <grass/colors.h>
#include <grass/raster.h>
#include <grass/vector.h>
#include <grass/dbmi.h>
#include <grass/glocale.h>
#include <grass/ogsf.h>

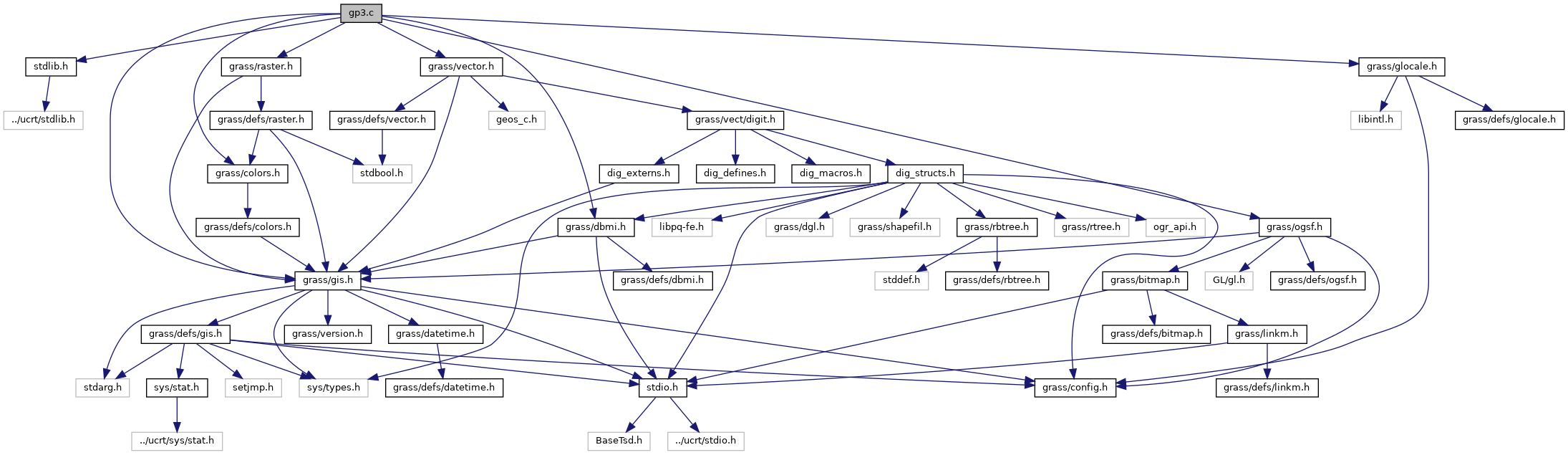

Include dependency graph for gp3.c:

Go to the source code of this file.

Functions

geopointGp_load_sites (const char *name, int *nsites, int *has_z)
 Load to points to memory.

int Gp_load_sites_thematic (geosite *gp, struct Colors *colors)
 Load styles for geopoints based on thematic mapping.


Detailed Description

OGSF library - loading point sets (lower level functions)

GRASS OpenGL gsurf OGSF Library

(C) 1999-2008, 2011 by the GRASS Development Team

This program is free software under the GNU General Public License (>=v2). Read the file COPYING that comes with GRASS for details.

Author
Bill Brown USACERL, GMSL/University of Illinois (January 1994)
Updated by Martin Landa <landa.martin gmail.com> (doxygenized in May 2008, thematic mapping in June 2011)

Definition in file gp3.c.

Function Documentation

◆ Gp_load_sites()

geopoint * Gp_load_sites ( const char name,
int nsites,
int has_z
)

Load to points to memory.

The other alternative may be to load to a tmp file.

Parameters
namename of vector map to be loaded
[out]nsitesnumber of loaded points
[out]has_z2D or 3D points data loaded?
Returns
pointer to geopoint struct (array)
NULL on failure

Definition at line 45 of file gp3.c.

References _, Cell_head::east, G_debug(), G_fatal_error(), G_find_vector2(), G_free(), G_fully_qualified_name(), G_get_set_window(), G_malloc, G_message(), G_warning(), G_zero(), GV_POINTS, name, g_point::next, Cell_head::north, NULL, PORT_DOUBLE_MAX, Cell_head::south, Cell_head::top, Vect_close(), Vect_is_3d(), Vect_new_cats_struct(), Vect_new_line_struct(), Vect_open_old(), Vect_read_next_line(), Vect_reset_cats(), Vect_set_constraint_region(), Vect_set_open_level(), Cell_head::west, X, line_pnts::x, Y, line_pnts::y, Z, and line_pnts::z.

Referenced by GP_load_site().

◆ Gp_load_sites_thematic()

int Gp_load_sites_thematic ( geosite gp,
struct Colors colors
)

Load styles for geopoints based on thematic mapping.

Parameters
gppointer to geosite structure
colorspointer to Colors structure or NULL
Returns
number of points defined by thematic mapping
-1 on error

Definition at line 181 of file gp3.c.

References _, BLU_MASK, db_close_database_shutdown_driver(), db_get_value_int(), db_get_value_string(), db_select_value(), db_start_driver_open_database(), G_fatal_error(), G_find_vector2(), G_free(), G_fully_qualified_name(), G_malloc, G_message(), G_str_to_color(), G_warning(), G_zero(), GP_str_to_marker(), GRN_MASK, NULL, Rast_get_c_color(), RED_MASK, Vect_cat_get(), Vect_destroy_field_info(), Vect_get_field(), Vect_open_old(), and Vect_set_open_level().

Referenced by GP_set_style_thematic().
