GRASS Programmer's Manual
6.5.svn(2014)-r66266
|

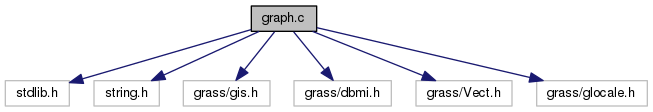

#include <stdlib.h>#include <string.h>#include <grass/gis.h>#include <grass/dbmi.h>#include <grass/Vect.h>#include <grass/glocale.h>
Go to the source code of this file.
Functions | |
| void | Vect_graph_init (GRAPH *graph, int nodes_costs) |
| Initialize graph structure. More... | |
| void | Vect_graph_build (GRAPH *graph) |
| Build network graph. More... | |
| void | Vect_graph_add_edge (GRAPH *graph, int from, int to, double costs, int id) |
| Add edge to graph. More... | |
| void | Vect_graph_set_node_costs (GRAPH *graph, int node, double costs) |
| Set node costs. More... | |
| int | Vect_graph_shortest_path (GRAPH *graph, int from, int to, struct ilist *List, double *cost) |
| Find shortest path. More... | |
Add edge to graph.
Internal format for edge costs is integer, costs are multiplied before conversion to int by 1000. Costs -1 for infinity i.e. arc or node is closed and cannot be traversed.
| graph | poiter to graph structure |
| from | from node |
| to | to node |
| costs | costs value |
| id | edge id |
Definition at line 129 of file Vlib/graph.c.
References dglAddEdge(), G_debug(), and G_fatal_error().
| void Vect_graph_build | ( | GRAPH * | graph | ) |
Build network graph.
Internal format for edge costs is integer, costs are multiplied before conversion to int by 1000. Costs -1 for infinity i.e. arc or node is closed and cannot be traversed.
| graph | poiter to graph structure |
Definition at line 102 of file Vlib/graph.c.
References dglFlatten(), G_debug(), and G_fatal_error().
| void Vect_graph_init | ( | GRAPH * | graph, |
| int | nodes_costs | ||
| ) |
Initialize graph structure.
| graph | poiter to graph structure |
| nodes_costs | use node costs |
Definition at line 76 of file Vlib/graph.c.
References dglInitialize(), and G_debug().
| void Vect_graph_set_node_costs | ( | GRAPH * | graph, |
| int | node, | ||
| double | costs | ||
| ) |
Set node costs.
Internal format for edge costs is integer, costs are multiplied before conversion to int by 1000. Costs -1 for infinity i.e. arc or node is closed and cannot be traversed.
| graph | poiter to graph structure |
| node | node id |
| costs | costs value |
Definition at line 159 of file Vlib/graph.c.
References dglGetNode(), dglNodeSet_Attr(), and G_debug().
| int Vect_graph_shortest_path | ( | GRAPH * | graph, |
| int | from, | ||
| int | to, | ||
| struct ilist * | List, | ||
| double * | cost | ||
| ) |
Find shortest path.
Costs for 'from' and 'to' nodes are not considered (SP found even if 'from' or 'to' are 'closed' (costs = -1) and costs of these nodes are not added to SP costs result.
| graph | pointer to graph structure |
| from | from node |
| to | to node |
| List | list of line ids |
| cost | costs value |
Definition at line 189 of file Vlib/graph.c.
References _dglSPReport::cArc, dglEdgeGet_Cost(), dglEdgeGet_Id(), dglFreeSPReport(), dglShortestDistance(), dglShortestPath(), dglStrerror(), G_debug(), G_warning(), _dglSPArc::nDistance, _dglSPReport::nDistance, _dglSPArc::nFrom, _dglSPArc::nTo, NULL, _dglSPReport::pArc, _dglSPArc::pnEdge, Vect_list_append(), and Vect_reset_list().
