GRASS Programmer's Manual
6.5.svn(2014)-r66266
|
OGSF library - loading and manipulating volumes (lower level functions) More...

Go to the source code of this file.
Macros | |
| #define | FIRST_VOL_ID 81721 |
Functions | |
| geovol * | gvl_get_vol (int id) |
| Get volume set structure. More... | |
| geovol * | gvl_get_prev_vol (int id) |
| Get previous volume. More... | |
| int | gvl_getall_vols (geovol **gvols) |
| Get all volumes. More... | |
| int | gvl_num_vols (void) |
| Get number of loaded volume sets. More... | |
| geovol * | gvl_get_last_vol (void) |
| Get last volume set from the list. More... | |
| geovol * | gvl_get_new_vol (void) |
| Allocate new volume set and add it to the list. More... | |
| int | gvl_init_vol (geovol *gvl, double ox, double oy, double oz, int rows, int cols, int depths, double xres, double yres, double zres) |
| Initialize geovol structure. More... | |
| void | gvl_delete_vol (int id) |
| Remove volume set from list. More... | |
| int | gvl_free_vol (geovol *fvl) |
| Free geovol struct. More... | |
| void | gvl_free_volmem (geovol *fvl) |
| Free geovol struct memory. More... | |
| void | print_vol_fields (geovol *gvl) |
| Debug volume fields. More... | |
| int | gvl_get_xextents (geovol *gvl, float *min, float *max) |
| Get volume x-extent value. More... | |
| int | gvl_get_yextents (geovol *gvl, float *min, float *max) |
| Get volume y-extent value. More... | |
| int | gvl_get_zextents (geovol *gvl, float *min, float *max) |
| Get volume z-extent value. More... | |
| int | gvl_get_xrange (float *min, float *max) |
| Get volume x-range value. More... | |
| int | gvl_get_yrange (float *min, float *max) |
| Get volume y-range value. More... | |
| int | gvl_get_zrange (float *min, float *max) |
| Get volume z-range value. More... | |
| int | gvl_isosurf_init (geovol_isosurf *isosurf) |
| Initialize geovol_isosurf struct. More... | |
| int | gvl_isosurf_freemem (geovol_isosurf *isosurf) |
| Free geovol_isosurf struct. More... | |
| geovol_isosurf * | gvl_isosurf_get_isosurf (int id, int isosurf_id) |
| Get isosurface of given volume set. More... | |
| int | gvl_isosurf_get_att_src (geovol_isosurf *isosurf, int desc) |
| Get attribute source. More... | |
| int | gvl_isosurf_set_att_src (geovol_isosurf *isosurf, int desc, int src) |
| Set attribute source. More... | |
| int | gvl_isosurf_set_att_const (geovol_isosurf *isosurf, int desc, float constant) |
| Set isosurface attribute constant. More... | |
| int | gvl_isosurf_set_att_map (geovol_isosurf *isosurf, int desc, const char *filename) |
| Set attribute map. More... | |
| int | gvl_isosurf_set_att_changed (geovol_isosurf *isosurf, int desc) |
| Set attribute changed. More... | |
| int | gvl_slice_init (geovol_slice *slice) |
| Initialize geovol_slice struct. More... | |
| int | gvl_slice_freemem (geovol_slice *slice) |
| Free geovol_slice struct. More... | |
| geovol_slice * | gvl_slice_get_slice (int id, int slice_id) |
| Get geovol_slice struct. More... | |
OGSF library - loading and manipulating volumes (lower level functions)
GRASS OpenGL gsurf OGSF Library
(C) 1999-2008 by the GRASS Development Team
This program is free software under the GNU General Public License (>=v2). Read the file COPYING that comes with GRASS for details.

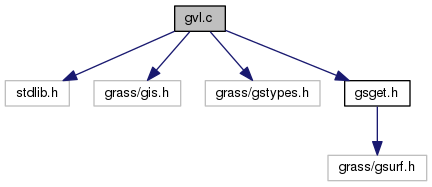

Definition in file gvl.c.
| #define FIRST_VOL_ID 81721 |
Definition at line 27 of file gvl.c.
Referenced by gvl_get_new_vol().
| void gvl_delete_vol | ( | int | id | ) |
Remove volume set from list.
| id | volume set id |
Definition at line 241 of file gvl.c.
References G_debug(), gvl_free_vol(), and gvl_get_vol().
Referenced by GVL_delete_vol().
| int gvl_free_vol | ( | geovol * | fvl | ) |
Free geovol struct.
| fvl | pointer to geovol struct |
Definition at line 264 of file gvl.c.
References G_debug(), G_free(), gvl_free_volmem(), and NULL.
Referenced by gvl_delete_vol().
| void gvl_free_volmem | ( | geovol * | fvl | ) |
Free geovol struct memory.
| fvl | pointer to geovol struct |
Definition at line 313 of file gvl.c.
References gvl_file_free_datah().
Referenced by gvl_free_vol().
| geovol* gvl_get_last_vol | ( | void | ) |
Get last volume set from the list.
Definition at line 122 of file gvl.c.
References G_debug(), and NULL.
Referenced by gvl_get_new_vol().
| geovol* gvl_get_new_vol | ( | void | ) |
Allocate new volume set and add it to the list.
Definition at line 145 of file gvl.c.
References FIRST_VOL_ID, G_debug(), gvl_get_last_vol(), and NULL.
Referenced by GVL_new_vol().
| geovol* gvl_get_prev_vol | ( | int | id | ) |
| geovol* gvl_get_vol | ( | int | id | ) |
Get volume set structure.
| id | volume set id |
Definition at line 39 of file gvl.c.
References G_debug(), and NULL.
Referenced by gvl_delete_vol(), GVL_draw_vol(), GVL_draw_wire(), GVL_Get_ClientData(), GVL_get_dims(), GVL_get_trans(), GVL_get_volname(), GVL_isosurf_add(), GVL_isosurf_del(), GVL_isosurf_get_drawmode(), GVL_isosurf_get_drawres(), gvl_isosurf_get_isosurf(), GVL_isosurf_move_down(), GVL_isosurf_move_up(), GVL_isosurf_num_isosurfs(), GVL_isosurf_set_drawmode(), GVL_isosurf_set_drawres(), GVL_load_vol(), GVL_Set_ClientData(), GVL_set_focus_center_map(), GVL_set_trans(), GVL_slice_add(), GVL_slice_del(), GVL_slice_get_drawmode(), GVL_slice_get_drawres(), GVL_slice_get_pos(), gvl_slice_get_slice(), GVL_slice_move_down(), GVL_slice_move_up(), GVL_slice_num_slices(), GVL_slice_set_drawmode(), GVL_slice_set_drawres(), GVL_slice_set_pos(), and GVL_vol_exists().
| int gvl_get_xextents | ( | geovol * | gvl, |
| float * | min, | ||
| float * | max | ||
| ) |
Get volume x-extent value.
| gvl | pointer to geovol struct | |
| [out] | min | x-min value |
| [out] | max | y-max value |
Definition at line 351 of file gvl.c.
Referenced by gvl_get_xrange().
| int gvl_get_xrange | ( | float * | min, |
| float * | max | ||
| ) |
Get volume x-range value.
| [out] | min | x-min value |
| [out] | max | x-max value |
Definition at line 401 of file gvl.c.
References gvl_get_xextents().
| int gvl_get_yextents | ( | geovol * | gvl, |
| float * | min, | ||
| float * | max | ||
| ) |
Get volume y-extent value.
| gvl | pointer to geovol struct | |
| [out] | min | y-min value |
| [out] | max | y-max value |
Definition at line 368 of file gvl.c.
Referenced by gvl_get_yrange().
| int gvl_get_yrange | ( | float * | min, |
| float * | max | ||
| ) |
Get volume y-range value.
| [out] | min | y-min value |
| [out] | max | y-max value |
Definition at line 438 of file gvl.c.
References gvl_get_yextents().
| int gvl_get_zextents | ( | geovol * | gvl, |
| float * | min, | ||
| float * | max | ||
| ) |
Get volume z-extent value.
| gvl | pointer to geovol struct | |
| [out] | min | z-min value |
| [out] | max | z-max value |
Definition at line 385 of file gvl.c.
Referenced by gvl_get_zrange().
| int gvl_get_zrange | ( | float * | min, |
| float * | max | ||
| ) |
Get volume z-range value.
| [out] | min | z-min value |
| [out] | max | z-max value |
Definition at line 475 of file gvl.c.
References gvl_get_zextents().
Referenced by GS_get_zrange().
| int gvl_getall_vols | ( | geovol ** | gvols | ) |
| int gvl_init_vol | ( | geovol * | gvl, |
| double | ox, | ||
| double | oy, | ||
| double | oz, | ||
| int | rows, | ||
| int | cols, | ||
| int | depths, | ||
| double | xres, | ||
| double | yres, | ||
| double | zres | ||
| ) |
Initialize geovol structure.
| gvl | pointer to geovol struct |
| ox,oy,oz | |
| rows | number of rows |
| cols | number of cols |
| xres,yres,zres | x/y/z resolution value |
Definition at line 184 of file gvl.c.
References dialogs::cols, G_debug(), G_zero(), and NULL.
Referenced by GVL_new_vol().
| int gvl_isosurf_freemem | ( | geovol_isosurf * | isosurf | ) |
Free geovol_isosurf struct.
| isosurf | pointer to geovol_isosurf struct |
Definition at line 550 of file gvl.c.
References G_debug(), G_free(), and gvl_isosurf_set_att_src().
Referenced by GVL_isosurf_del().
Get attribute source.
| isosurf | pointer to geovol_isosurf struct |
| desc | attribute id |
Definition at line 605 of file gvl.c.
References G_debug().
Referenced by GVL_isosurf_get_att(), and gvl_isosurf_set_att_src().
Get isosurface of given volume set.
| id | volume set id |
| isosurf_id | isosurface id (0 - MAX_ISOSURFS) |
Definition at line 577 of file gvl.c.
References G_debug(), gvl_get_vol(), and NULL.
Referenced by GVL_isosurf_del(), GVL_isosurf_get_att(), GVL_isosurf_get_flags(), GVL_isosurf_get_maskmode(), GVL_isosurf_set_att_const(), GVL_isosurf_set_att_map(), GVL_isosurf_set_flags(), GVL_isosurf_set_maskmode(), and GVL_isosurf_unset_att().
| int gvl_isosurf_init | ( | geovol_isosurf * | isosurf | ) |
Initialize geovol_isosurf struct.
| isosurf | pointer to geovol_isosurf struct |
Definition at line 517 of file gvl.c.
References G_debug(), and NULL.
Referenced by GVL_isosurf_add().
Set attribute changed.
| isosurf | pointer to geovol_isosurf struct |
| desc | attribute id |
Definition at line 723 of file gvl.c.
References G_debug().
Referenced by gvl_isosurf_set_att_src(), and GVL_isosurf_set_drawres().
Set isosurface attribute constant.
| isosurf | pointer to geovol_isosurf struct |
| desc | attribute descriptor |
| constant | attribute value |
Definition at line 663 of file gvl.c.
References G_debug(), and gvl_isosurf_set_att_src().
Referenced by GVL_isosurf_set_att_const().
Set attribute map.
| isosurf | pointer to geovol_isosurf struct |
| desc | attribute id |
| filename | filename |
Definition at line 690 of file gvl.c.
References G_debug(), gvl_file_newh(), gvl_isosurf_set_att_src(), and Gvl_load_colors_data().
Referenced by GVL_isosurf_set_att_map().
Set attribute source.
| isosurf | pointer to geovol_isosurf struct |
| desc | attribute id |
| src | attribute value |
Definition at line 630 of file gvl.c.
References G_debug(), gvl_file_free_datah(), gvl_isosurf_get_att_src(), gvl_isosurf_set_att_changed(), and Gvl_unload_colors_data().
Referenced by gvl_isosurf_freemem(), gvl_isosurf_set_att_const(), gvl_isosurf_set_att_map(), and GVL_isosurf_unset_att().
| int gvl_num_vols | ( | void | ) |
Get number of loaded volume sets.
Definition at line 104 of file gvl.c.
References G_debug().
Referenced by GVL_num_vols().
| int gvl_slice_freemem | ( | geovol_slice * | slice | ) |
Free geovol_slice struct.
| slice | pointer to geovol_slice struct |
Definition at line 782 of file gvl.c.
References G_debug(), and G_free().
Referenced by GVL_slice_del().
Get geovol_slice struct.
| id | volume set id |
| slice_id | slice id |
Definition at line 803 of file gvl.c.
References gvl_get_vol(), and NULL.
Referenced by GVL_slice_del(), GVL_slice_get_pos(), GVL_slice_get_transp(), GVL_slice_set_pos(), and GVL_slice_set_transp().
| int gvl_slice_init | ( | geovol_slice * | slice | ) |
Initialize geovol_slice struct.
| slice | pointer to geovol_slice struct |
Definition at line 756 of file gvl.c.
References G_debug(), and NULL.
Referenced by GVL_slice_add().
