window_map.c File Reference

GIS Library - Window mapping functions. More...

#include <grass/gis.h>
#include "G.h"

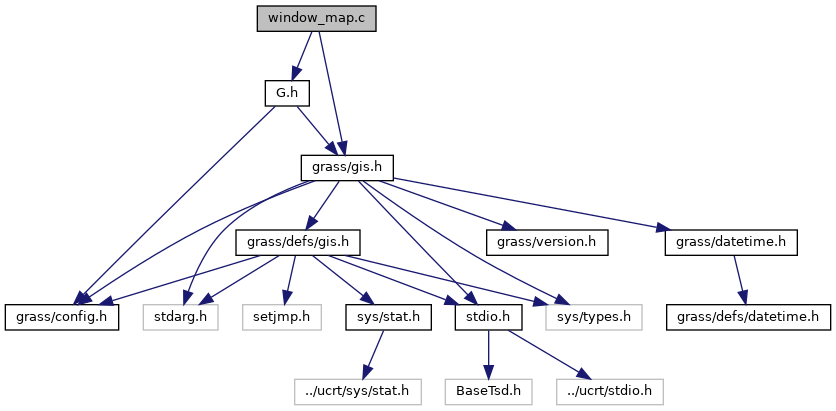

Include dependency graph for gis/window_map.c:

Go to the source code of this file.

Functions
double	G_adjust_east_longitude (double east, double west)
	Adjust east longitude.
double	G_adjust_easting (double east, const struct Cell_head *window)
	Returns east not smaller than west.
void	G__init_window (void)
	Initialize window (region).

Detailed Description

GIS Library - Window mapping functions.

SPDX-FileCopyrightText: 2001-2009, 2011 GRASS Development Team SPDX-License-Identifier: GPL-2.0-or-later

Author

Original author CERL

Definition in file gis/window_map.c.

Function Documentation

G__init_window()

void G__init_window

(

void

)

Initialize window (region).

Definition at line 74 of file gis/window_map.c.

References G_get_window(), G_initialize_done(), G_is_initialized(), G__::window, and G__::window_set.

Referenced by G_get_set_window(), G_init_all(), and Rast__init_window().

G_adjust_east_longitude()

double G_adjust_east_longitude	(	double	east,
		double	west
	)

Adjust east longitude.

This routine returns an equivalent east that is at least as large as the west coordinate.

Note: This routine should be used only with latitude-longitude coordinates.

Parameters

east	east coordinate
west	west coordinate

Returns

east coordinate

Definition at line 30 of file gis/window_map.c.

G_adjust_easting()

double G_adjust_easting	(	double	east,
		const struct Cell_head *	window
	)

Returns east not smaller than west.

If the region projection is PROJECTION_LL, then this routine returns an equivalent east that is not smaller than the coordinate for the western edge of the region and, if possible, smaller than the coordinate for the eastern edge of the region. Otherwise no adjustment is made and the original east is returned.

Parameters

east	east coordinate
window	pointer to Cell_head

Returns

east coordinate

Definition at line 56 of file gis/window_map.c.

References Cell_head::east, Cell_head::proj, and PROJECTION_LL.

Referenced by G_plot_where_en(), G_plot_where_xy(), and Rast_easting_to_col().
