Computes the Terrain Ruggedness Index.

r.tri [-c] input=name output=name size=integer [exponent=float] [processes=integer] [--overwrite] [--verbose] [--quiet] [--qq] [--ui]

Example:

r.tri input=name output=name size=3

grass.script.run_command("r.tri", input, output, size=3, exponent=0.0, processes=1, flags=None, overwrite=False, verbose=False, quiet=False, superquiet=False)

Example:

gs.run_command("r.tri", input="name", output="name", size=3)

Parameters

input=name [required]
    Input elevation raster
output=name [required]
    Output Terrain Ruggedness Index (TRI)
size=integer [required]
    Size of neighbourhood in cells (> 2 and <= 51)
    Default: 3
exponent=float
    Distance weighting exponent (>= 0 and <= 4.0)
    Default: 0.0
processes=integer
    Number of processing cores for tiled calculation
    Number of processing cores for tiled calculation (negative numbers are all cpus -1, -2 etc.)
    Default: 1
-c
    Use circular neighborhood
--overwrite
    Allow output files to overwrite existing files
--help
    Print usage summary
--verbose
    Verbose module output
--quiet
    Quiet module output
--qq
    Very quiet module output
--ui
    Force launching GUI dialog

input : str, required
    Input elevation raster
    Used as: input, raster, name
output : str, required
    Output Terrain Ruggedness Index (TRI)
    Used as: output, raster, name
size : int, required
    Size of neighbourhood in cells (> 2 and <= 51)
    Default: 3
exponent : float, optional
    Distance weighting exponent (>= 0 and <= 4.0)
    Default: 0.0
processes : int, optional
    Number of processing cores for tiled calculation
    Number of processing cores for tiled calculation (negative numbers are all cpus -1, -2 etc.)
    Default: 1
flags : str, optional
    Allowed values: c
    c
        Use circular neighborhood
overwrite: bool, optional
    Allow output files to overwrite existing files
    Default: False
verbose: bool, optional
    Verbose module output
    Default: False
quiet: bool, optional
    Quiet module output
    Default: False
superquiet: bool, optional
    Very quiet module output
    Default: False

DESCRIPTION

r.tri calculates the Terrain Ruggedness Index (TRI) of Riley et al. (1999). The index represents the mean change in elevation between a grid cell and its neighbours, over a user-specified moving window size. The original calculation in Riley et al. (1999) used only a 3x3 neighbourhood and represented the sum of the absolute deviations between the center pixel and its immediate 8 neighbours. In r.tri, this calculation is modified so that the calculation can be extended over any scale by taking the mean of the absolute deviations.

NOTES

r.tri produces fairly similar results to the average deviation of elevation values, apart from the center pixel is used in place of the mean. In practice, this produces a slightly less smoothed result that can potentially highlight finer-scale terrain features. However, because the terrain ruggedness index does not consider the distance of each cell from the centre cell in it's calculation, the TRI results can become noisy with large window sizes. To avoid this, weighting each cell by the inverse of its distance can be used by setting the exponent parameter to > 0.

Similar to many other GRASS GIS algorithms, cell padding is not performed automatically which will leave null values at the boundaries of the output raster relative to the size of the input raster. To minimize this effect the DEM needs to be buffered/grown prior to using r.tri.

Currently, r.tri is implemented using a r.mapcalc focal function. This becomes slow for large window sizes. To reduce computational times for large raster datasets, setting processes parameter to > 1 will use a parallelized and tiled calculations that is spread across multiple processing cores. This option requires the GRASS addon r.mapcalc.tiled to be installed.

EXAMPLE

d.rast map=elev_lid792_1m@PERMANENT
g.region raster=elev_lid792_1m@PERMANENT -a
r.tri input=elev_lid792_1m@PERMANENT size=9 output=tri

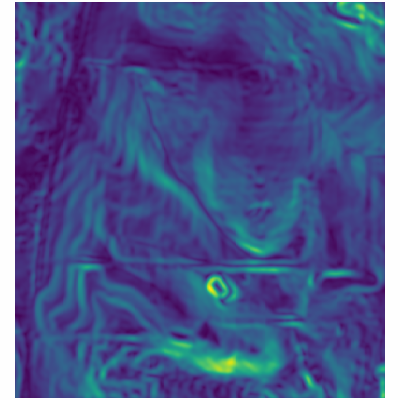

image-alt

REFERENCES

Riley, S. J., S. D. DeGloria and R. Elliot (1999). A terrain ruggedness index that quantifies topographic heterogeneity, Intermountain Journal of Sciences, vol. 5, No. 1-4, 1999.

SEE ALSO

r.mapcalc, r.mapcalc.tiled

AUTHOR

Steven Pawley

SOURCE CODE

Available at: r.tri source code (history)
Latest change: Thursday Feb 20 13:02:26 2025 in commit 53de819
