r.surf.fractal
Creates a fractal surface of a given fractal dimension.
r.surf.fractal output=name [dimension=float] [number=integer] [seed=integer] [--overwrite] [--verbose] [--quiet] [--qq] [--ui]
Example:
r.surf.fractal output=name
grass.script.run_command("r.surf.fractal", output, dimension=2.05, number=0, seed=None, overwrite=False, verbose=False, quiet=False, superquiet=False)
Example:
gs.run_command("r.surf.fractal", output="name")
Parameters
output=name [required]
Name for output raster map
dimension=float
Fractal dimension of surface (2 < D < 3)
Default: 2.05
number=integer
Number of intermediate images to produce
Default: 0
seed=integer
Seed value for the random number generator
Using the same seed ensures identical results, while a randomly generated seed produces different outcomes in each run.
--overwrite
Allow output files to overwrite existing files
--help
Print usage summary
--verbose
Verbose module output
--quiet
Quiet module output
--qq
Very quiet module output
--ui
Force launching GUI dialog
output : str, required
Name for output raster map
Used as: output, raster, name
dimension : float, optional
Fractal dimension of surface (2 < D < 3)
Default: 2.05
number : int, optional
Number of intermediate images to produce
Default: 0
seed : int, optional
Seed value for the random number generator
Using the same seed ensures identical results, while a randomly generated seed produces different outcomes in each run.
overwrite: bool, optional
Allow output files to overwrite existing files
Default: False
verbose: bool, optional
Verbose module output
Default: False
quiet: bool, optional
Quiet module output
Default: False
superquiet: bool, optional
Very quiet module output
Default: False
DESCRIPTION
r.surf.fractal creates a fractal surface of a given fractal dimension. It uses the spectral synthesis method. The module can create intermediate layers showing the build up of different spectral coefficients (see Saupe, pp.106-107 for an example of this).
This module generates naturally looking synthetical elevation models (DEM).
NOTE
This module requires the FFTW library for computing Discrete Fourier Transforms.
EXAMPLE
Generate surface using fractals in selected region, set color table and display with shade.
g.region -p raster=elevation
r.surf.fractal output=fractals
r.colors map=fractals color=byr
r.relief input=fractals output=fractals_shade
d.mon wx0
d.shade shade=fractals_shade color=fractals b=50

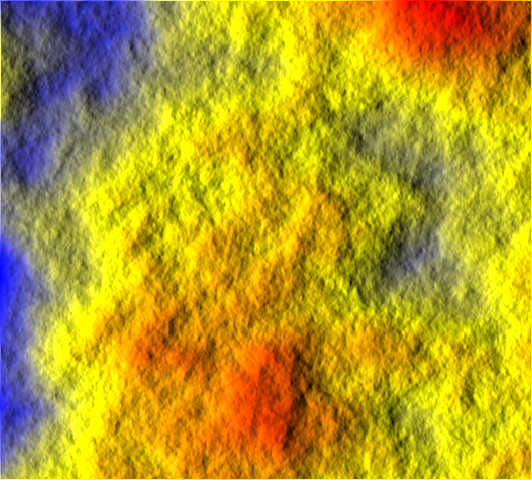

Artificial surface created with fractals
Compare results when using different fractal dimensions:
# D=2.0005
g.region -dp
r.surf.fractal out=dem_d2_0005 dim=2.0005
r.info -r dem_d2_0005
r.mapcalc "dem_d2_0005_final = 1.0 * dem_d2_0005 + abs(min(dem_d2_0005))"
r.colors dem_d2_0005_final color=terrain
r.slope.aspect dem_d2_0005_final aspect=dem_d2_0005_final_as
# D=2.90
r.surf.fractal out=dem_d2_90 dim=2.90
r.info -r dem_d2_90
r.mapcalc "dem_d2_90_final = 1.0 * dem_d2_90 + abs(min(dem_d2_90))"
r.colors dem_d2_90_final color=terrain
r.slope.aspect dem_d2_90_final aspect=dem_d2_90_final_as
Artificial DEMs created with fractals:
top: fractal dimension d=2.0005 (left: elevation map, right: aspect
map)
top: fractal dimension d=2.90 (left: elevation map, right: aspect map)
REFERENCES
Saupe, D. (1988) Algorithms for random fractals, in Barnsley M., Devaney R., Mandelbrot B., Peitgen, H-O., Saupe D., and Voss R. (1988) The Science of Fractal Images, Ch. 2, pp.71-136. London: Springer-Verlag.
SEE ALSO
r.surf.contour, r.surf.idw, r.surf.gauss, r.surf.random, v.surf.idw, v.surf.rst
AUTHOR
Jo Wood, Midlands Regional Research Laboratory (ASSIST), University of Leicester
SOURCE CODE
Available at: r.surf.fractal source code
