v.buffer

Creates a buffer around vector features of given type.

v.buffer [-sct] input=name [layer=string] [cats=range] [where=sql_query] [type=string [,string,...]] output=name [distance=float] [minordistance=float] [angle=float] [column=name] [scale=float] [tolerance=float] [--overwrite] [--verbose] [--quiet] [--qq] [--ui]

Example:

v.buffer input=name output=name

grass.script.run_command("v.buffer", input, layer="-1", cats=None, where=None, type="point,line,area", output, distance=None, minordistance=None, angle=0, column=None, scale=1.0, tolerance=None, flags=None, overwrite=False, verbose=False, quiet=False, superquiet=False)

Example:

gs.run_command("v.buffer", input="name", output="name")

Parameters

input=name [required]
    Name of input vector map
    Or data source for direct OGR access
layer=string
    Layer number or name ('-1' for all layers)
    A single vector map can be connected to multiple database tables. This number determines which table to use. When used with direct OGR access this is the layer name.
    Default: -1
cats=range
    Category values
    Example: 1,3,7-9,13
where=sql_query
    WHERE conditions of SQL statement without 'where' keyword
    Example: income < 1000 and population >= 10000
type=string [,string,...]
    Input feature type
    Allowed values: point, line, boundary, centroid, area
    Default: point,line,area
output=name [required]
    Name for output vector map
distance=float
    Buffer distance along major axis in map units
minordistance=float
    Buffer distance along minor axis in map units
angle=float
    Angle of major axis in degrees
    Default: 0
column=name
    Name of column to use for buffer distances
scale=float
    Scaling factor for attribute column values
    Default: 1.0
tolerance=float
    Maximum distance between theoretical arc and polygon segments as multiple of buffer (default 0.01)
-s
    Make outside corners straight
-c
    Do not make caps at the ends of polylines
-t
    Transfer categories and attributes
--overwrite
    Allow output files to overwrite existing files
--help
    Print usage summary
--verbose
    Verbose module output
--quiet
    Quiet module output
--qq
    Very quiet module output
--ui
    Force launching GUI dialog

input : str, required
    Name of input vector map
    Or data source for direct OGR access
    Used as: input, vector, name
layer : str, optional
    Layer number or name ('-1' for all layers)
    A single vector map can be connected to multiple database tables. This number determines which table to use. When used with direct OGR access this is the layer name.
    Used as: input, layer
    Default: -1
cats : str, optional
    Category values
    Example: 1,3,7-9,13
    Used as: input, cats, range
where : str, optional
    WHERE conditions of SQL statement without 'where' keyword
    Example: income < 1000 and population >= 10000
    Used as: input, sql_query, sql_query
type : str | list[str], optional
    Input feature type
    Allowed values: point, line, boundary, centroid, area
    Default: point,line,area
output : str, required
    Name for output vector map
    Used as: output, vector, name
distance : float, optional
    Buffer distance along major axis in map units
minordistance : float, optional
    Buffer distance along minor axis in map units
angle : float, optional
    Angle of major axis in degrees
    Default: 0
column : str, optional
    Name of column to use for buffer distances
    Used as: input, dbcolumn, name
scale : float, optional
    Scaling factor for attribute column values
    Default: 1.0
tolerance : float, optional
    Maximum distance between theoretical arc and polygon segments as multiple of buffer (default 0.01)
flags : str, optional
    Allowed values: s, c, t
    s
        Make outside corners straight
    c
        Do not make caps at the ends of polylines
    t
        Transfer categories and attributes
overwrite: bool, optional
    Allow output files to overwrite existing files
    Default: False
verbose: bool, optional
    Verbose module output
    Default: False
quiet: bool, optional
    Quiet module output
    Default: False
superquiet: bool, optional
    Very quiet module output
    Default: False

DESCRIPTION

v.buffer creates a buffer around features of given type, which have a category in the given layer. The tolerance controls the number of vector segments being generated (the smaller the value, the more vector segments are generated).

NOTES

Internal buffers for areas can be generated with negative distance values ("inward buffer" or "negative buffer" or "shrinking").

v.buffer fusions the geometries of buffers by default. Categories and attribute table will not be transferred (this would not make sense as one buffer geometry can be the result of many different input geometries). To transfer the categories and attributes the user can set the -t flag. This will result in buffers being cut up where buffers of individual input geometries overlap. Each part that is the result of overlapping buffers of multiple geometries will have multiple categories corresponding to those geometries, and multiple buffer areas can have the same category. The buffer for the input feature with category X can thus be retrieved by selecting all buffer areas with category X (see example below).

Buffers for lines and areas are generated using the algorithms from the GEOS library.

For advanced users: the built-in buffer algorithm is no longer used, as we use GEOS instead. If GRASS was not compiled with GEOS support or the environmental variable GRASS_VECTOR_BUFFER is defined, then GRASS generates buffers using the built-in buffering algorithm (which is still buggy for some input data).

The options minordistance, angle, tolerance are kept for backward compatibility and have no effect with GEOS buffering.

Corner settings

The following vector line related corners (also called "cap") exist:

  • no cap:       line buffer: no cap
  • rounded cap: line buffer: rounded cap
  • square cap: line buffer: square cap

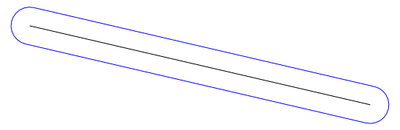

By default v.buffer creates rounded buffers (blue color on figure below):

v_buffer_line

Straight corners with caps are created using the -s flag (red color on the figure below), while the -c flag doesn't make caps at the ends of polylines (green color on the figure below):

v_buffer_line_s

With a point vector map as input data, square buffers are created instead of round buffers by using the -s flag.

v_buffer_point_s

EXAMPLES

All examples are based on the North Carolina sample dataset.

Buffer around input lines

v.buffer input=roadsmajor output=roadsmajor_buffer type=line distance=100

Buffer of 100m along the roadsmajor lines
Buffer of 100m along the "roadsmajor" lines (map subset, original center line shown in black)

Circles around input points

v.buffer input=hospitals output=hospitals_circled type=point distance=2000

Buffer of 2000m around the hospitals points
Buffer of 2000m around the "hospitals" points (map subset, original points shown in black, new area centroids in red)

Circles around input points with attribute transfer

v.buffer input=hospitals output=hospitals_circled type=point distance=1000 -t

# display buffer around hospital with category 36,
# this buffer is composed of several areas:
d.vect map=hospitals_circled type=area layer=1 cats=36
# extract this buffer, dissolving boundaries
v.extract in=hospitals_circled output=hospital_36_circled layer=1 cats=36 -d

Buffer around input areas

v.buffer input=lakes output=lakes_buffer type=area distance=100

Buffer of 100m around the "lakes" polygons
Buffer of 100m around the "lakes" polygons (map subset, original areas shown in black)

Buffer inside input areas

In this example, an internal buffer ("inward buffer" or "negative buffer") is generated using a negative distance value:

v.buffer input=lakes output=lakes_buffer type=area distance=-50

Internal buffer of 50m inside the lakes polygons
Internal buffer of 50m inside the "lakes" polygons (map subset, original areas shown in black)

Not all features are buffered, only the polygons that allow creation inside a topological cleaned polygon.

REFERENCES

SEE ALSO

r.buffer, v.parallel, v.extract, v.type, v.patch, v.db.connect

AUTHORS

Radim Blazek
Rewritten by Rosen Matev (with support through the Google Summer of Code program 2008)
Rewritten by Markus Metz (2011, 2012)
