i.hyper.import

Hyperspectral imagery import.

i.hyper.import [-n] input=name product=string output=name [composites=string [,string,...]] [composites_custom=string] [strength=integer] [--overwrite] [--verbose] [--quiet] [--qq] [--ui]

Example:

i.hyper.import input=name product=prisma output=name

grass.tools.Tools.i_hyper_import(input, product="prisma", output, composites=None, composites_custom=None, strength=96, flags=None, overwrite=None, verbose=None, quiet=None, superquiet=None)

Example:

tools = Tools()
tools.i_hyper_import(input="name", product="prisma", output="name")

This grass.tools API is experimental in version 8.5 and expected to be stable in version 8.6.

grass.script.run_command("i.hyper.import", input, product="prisma", output, composites=None, composites_custom=None, strength=96, flags=None, overwrite=None, verbose=None, quiet=None, superquiet=None)

Example:

gs.run_command("i.hyper.import", input="name", product="prisma", output="name")

Parameters

input=name [required]
    Path to the hyperspectral imagery: pick any file if the product is multi-file.
product=string [required]
    Define the hyperspectral product you want to import (lowercase).
    Allowed values: prisma, enmap, tanager, ihyper
    Default: prisma
output=name [required]
    Set the name of the output hyperspectral 3D raster map.
composites=string [,string,...]
    Composites to generate during import
    Allowed values: rgb, cir, swir_agriculture, swir_geology
composites_custom=string
    Wavelengths for custom composites
strength=integer
    Cropping intensity - upper brightness level (0-100)
    Default: 96
-n
    Record full source-band validity in bands.validity (do not add NULL bands to raster_3d)
--overwrite
    Allow output files to overwrite existing files
--help
    Print usage summary
--verbose
    Verbose module output
--quiet
    Quiet module output
--qq
    Very quiet module output
--ui
    Force launching GUI dialog

input : str | io.StringIO, required
    Path to the hyperspectral imagery: pick any file if the product is multi-file.
    Used as: input, file, name
product : str, required
    Define the hyperspectral product you want to import (lowercase).
    Allowed values: prisma, enmap, tanager, ihyper
    Default: prisma
output : str, required
    Set the name of the output hyperspectral 3D raster map.
    Used as: output, raster_3d, name
composites : str | list[str], optional
    Composites to generate during import
    Allowed values: rgb, cir, swir_agriculture, swir_geology
composites_custom : str, optional
    Wavelengths for custom composites
strength : int, optional
    Cropping intensity - upper brightness level (0-100)
    Default: 96
flags : str, optional
    Allowed values: n
    n
        Record full source-band validity in bands.validity (do not add NULL bands to raster_3d)
overwrite : bool, optional
    Allow output files to overwrite existing files
    Default: None
verbose : bool, optional
    Verbose module output
    Default: None
quiet : bool, optional
    Quiet module output
    Default: None
superquiet : bool, optional
    Very quiet module output
    Default: None

Returns:

result : grass.tools.support.ToolResult | None
If the tool produces text as standard output, a ToolResult object will be returned. Otherwise, None will be returned.

Raises:

grass.tools.ToolError: When the tool ended with an error.

input : str, required
    Path to the hyperspectral imagery: pick any file if the product is multi-file.
    Used as: input, file, name
product : str, required
    Define the hyperspectral product you want to import (lowercase).
    Allowed values: prisma, enmap, tanager, ihyper
    Default: prisma
output : str, required
    Set the name of the output hyperspectral 3D raster map.
    Used as: output, raster_3d, name
composites : str | list[str], optional
    Composites to generate during import
    Allowed values: rgb, cir, swir_agriculture, swir_geology
composites_custom : str, optional
    Wavelengths for custom composites
strength : int, optional
    Cropping intensity - upper brightness level (0-100)
    Default: 96
flags : str, optional
    Allowed values: n
    n
        Record full source-band validity in bands.validity (do not add NULL bands to raster_3d)
overwrite : bool, optional
    Allow output files to overwrite existing files
    Default: None
verbose : bool, optional
    Verbose module output
    Default: None
quiet : bool, optional
    Quiet module output
    Default: None
superquiet : bool, optional
    Very quiet module output
    Default: None

DESCRIPTION

i.hyper.import imports hyperspectral imagery into a 3D raster map (raster_3d).

The module reads supported hyperspectral products and converts their spectral bands into a single 3D raster map. The vertical (z) dimension of the 3D raster represents the spectral dimension, where each cell (voxel) contains the reflectance value for a specific spatial position (x, y) and spectral band index.

i.hyper.import is part of the i.hyper module family designed for hyperspectral data import, processing, and analysis in GRASS. It is typically used in combination with i.hyper.preproc, i.hyper.explore, i.hyper.composite, and i.hyper.export.

The module currently supports the following hyperspectral products:

  • PRISMA -- PRecursore IperSpettrale della Missione Applicativa (ASI)
  • EnMAP -- Environmental Mapping and Analysis Program (DLR / GFZ)
  • Tanager -- Planet Labs hyperspectral mission

During import, the appropriate product library from i_hyper_lib is automatically loaded (for example, enmap, prisma, or tanager). Metadata are parsed, bands are validated, and the resulting 3D raster map is created with band metadata (wavelength, FWHM, validity) and scene radiometric metadata (radiometric_quantity, radiometric_units).

The metadata are used by other i.hyper.* modules, so data imported with i.hyper.import or created with the same metadata structure are fully compatible across the toolset.

The resulting raster_3d map can be analysed with standard GRASS 3D raster tools (r3.mapcalc, r3.stats, r3.univar) or processed further with the i.hyper suite of modules.

NOTES

Imported 3D raster maps store hyperspectral reflectance or radiance values (depending on the product). Bands containing only NULL values are not added to the output raster_3d.

With the -n flag, source-band validity is recorded directly in bands.validity (with bands.count and bands.count_valid) without adding all-NULL bands to the output cube.

Imported datasets are written with metadata key derived=false. Datasets produced later by processing modules (for example i.hyper.preproc) are written as derived=true.

Extended metadata are written under unified branches (extended_metadata.acquisition, geometry, radiometry, atmosphere, quality, processing, uncertainty) and product-native provenance branches (extended_metadata.enmap, prisma, tanager). Unified and product-native keys may contain the same value when a unified key is derived directly from a source product key.

When the composites option is used, predefined or custom band combinations are exported as 2D raster composites (e.g., RGB, CIR, SWIR). All temporary rasters are automatically removed after import.

During import, i.hyper.import temporarily adjusts the computational region to match the input data, ensuring consistent alignment between imported bands. This region setting is temporary and restored at the end of processing.

i.hyper.import can also restore hyperspectral data directly from a native GRASS archive with product=ihyper. The archive structure is validated from its contents rather than the filename suffix, so any input filename is accepted as long as it contains a valid native archive. Native archives are unpacked into the current mapset and restore the native raster_3d together with its metadata.

Product notes:

  • Product levels that are not orthorectified are imported using product geolocation and nearest-neighbor assignment onto the current GRASS grid. This preserves original values, but may leave small holes or irregular borders where no source pixel maps to an output cell, which can be interpolated or otherwise handled later with existing GRASS tools.
  • Tanager BASIC products (/HDFEOS/SWATHS/HYP/...) use per-pixel geolocation and Planet_Ortho_Framing for projection and gridding.
  • Tanager ortho products (/HDFEOS/GRIDS/HYP/...) are imported directly in native map grid geometry (no geolocation reprojection).
  • For Tanager ortho products, map grid parameters are read from /HDFEOS INFORMATION/StructMetadata.0 (UL/LR corners), /HDFEOS/GRIDS/HYP attribute epsg_code, and spectral dataset shape (rows/cols).

EXAMPLES

::: code

# EnMAP example
# Create a new GRASS project with EPSG:32633 (UTM Zone 33N)
grass -c EPSG:32633 -e ~/grassdata/hyper_33N

# Initialize and enter the new project (PERMANENT Mapset)
grass ~/grassdata/hyper_33N/PERMANENT

:::

::: code

# PRISMA L2D example
i.hyper.import input=/data/PRISMA.he5 \
               product=prisma \
               output=prisma \
               composites='rgb,cir,swir_agriculture,swir_geology'

# Console output:
Importing product: PRISMA
Loading floating point  data with 4  bytes ...  (1254x1222x234)
Created 3D raster map with all bands: prisma (234 bands).
Generated composite raster: prisma_rgb
Generated composite raster: prisma_cir
Generated composite raster: prisma_swir_agriculture
Generated composite raster: prisma_swir_geology
(Fri Nov  5 13:12:00 2025) Command finished (1 min 23 sec)

:::

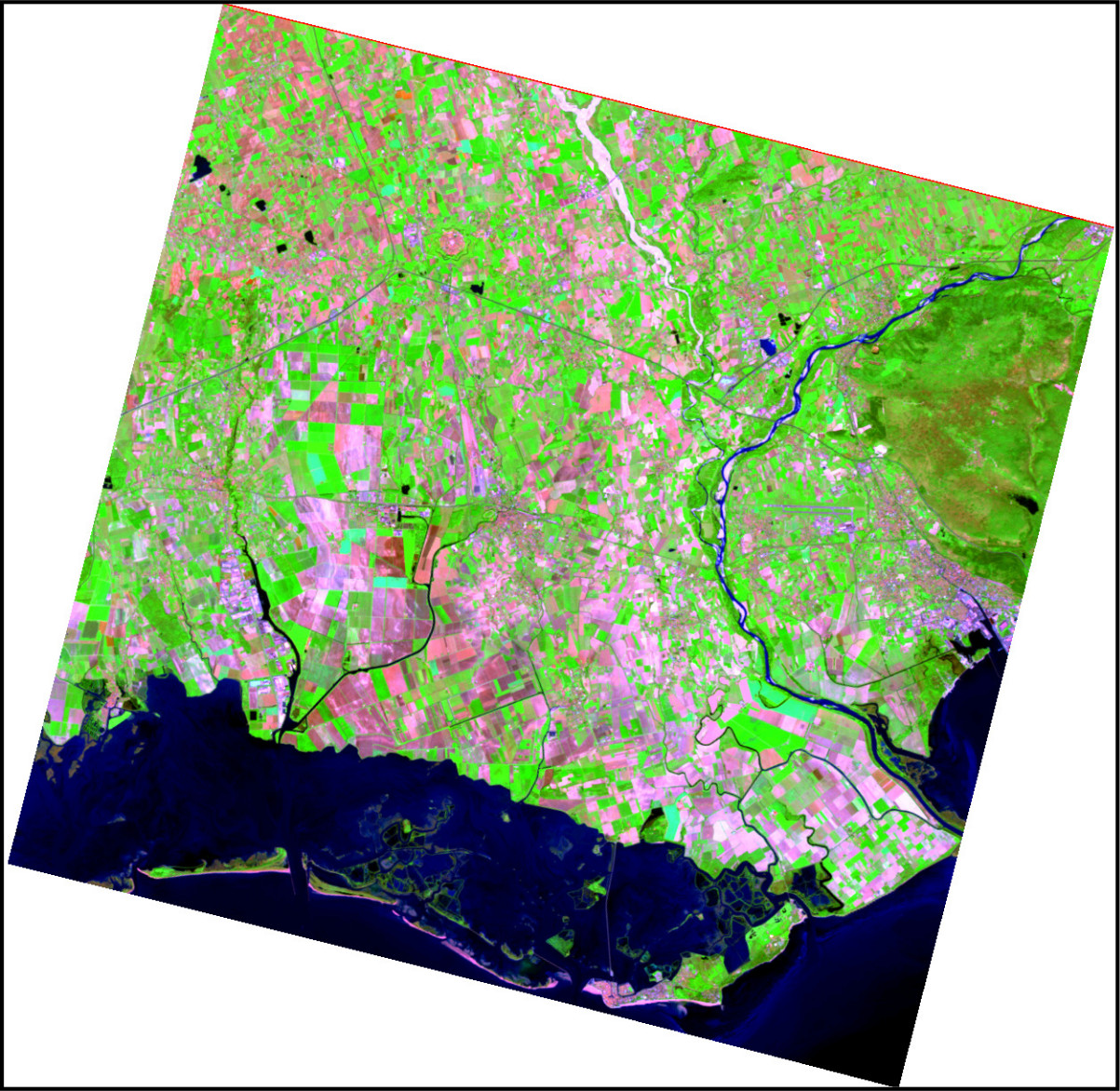

:::::::::: {align="center" style="margin: 10px"} ::: {align="center" style="margin: 10px"} PRISMA SWIR-geology composite example{width="600" height="600" border="0"}\ Figure: PRISMA SWIR-geology composite generated with i.hyper.import\ [Data source: PRISMA Product © Italian Space Agency (ASI), used under ASI License to Use.]{.small} ::: ::::::::::

::: code

# Import an EnMAP L2A product and create RGB and CIR composites
i.hyper.import input=/data/EnMAP_data_folder/ \
               product=enmap \
               output=enmap \
               composites='cir,swir_agriculture' \
               composites_custom='650,1650,2200'

:::

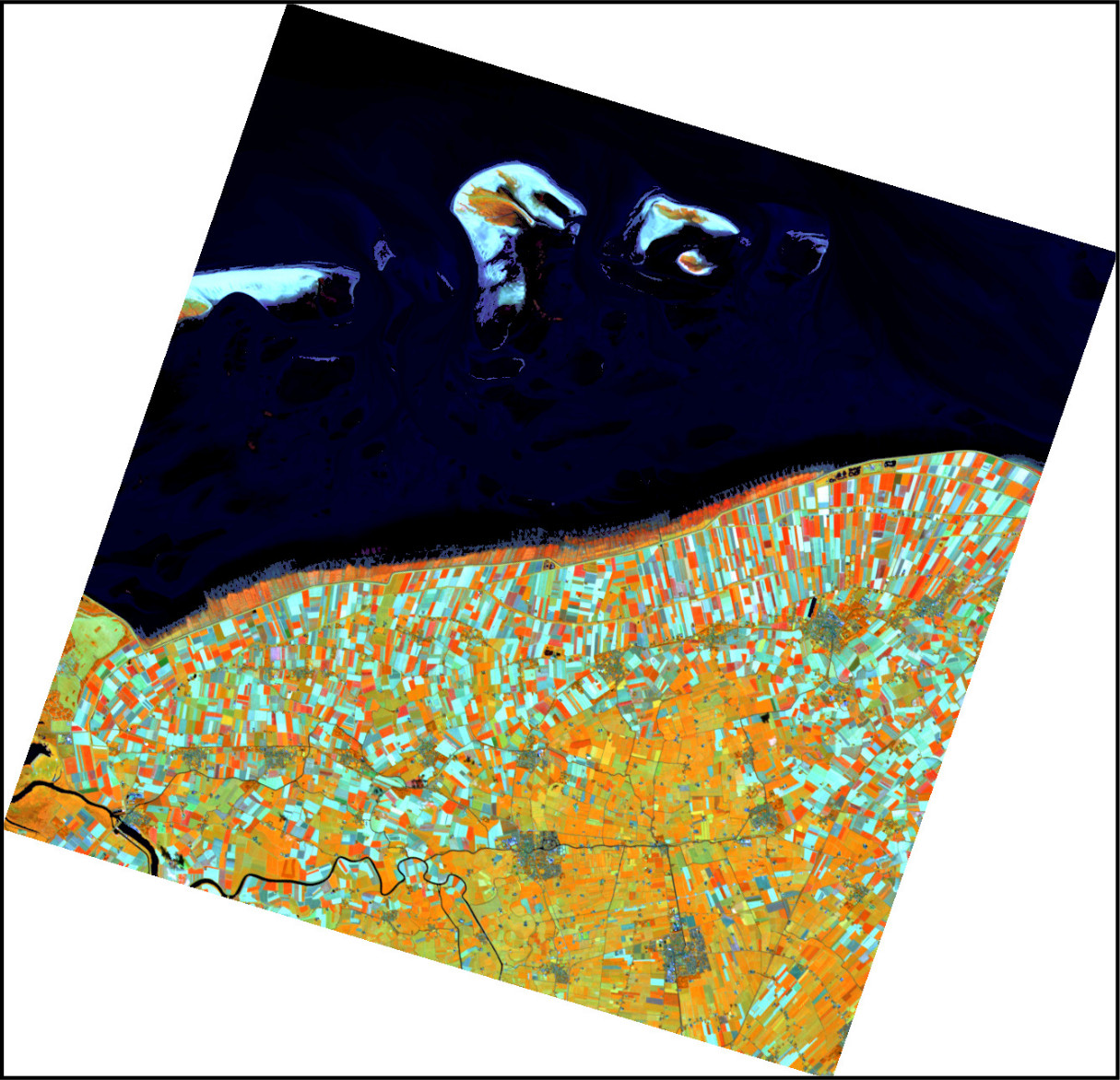

::::::: {align="center" style="margin: 10px"} ::: {align="center" style="margin: 10px"} EnMAP SWIR-agriculture composite
example\ Figure: EnMAP SWIR-agriculture composite generated with i.hyper.import\ [Data source: Copyright © 2012-2025 EnMAP at Earth Observation Center EOC of DLR.]{.small} ::: :::::::

::: code

# Tanager BASIC radiance example
i.hyper.import input=/data/Tanager.h5 \
               product=tanager \
               output=tanager \
               composites='rgb'

:::

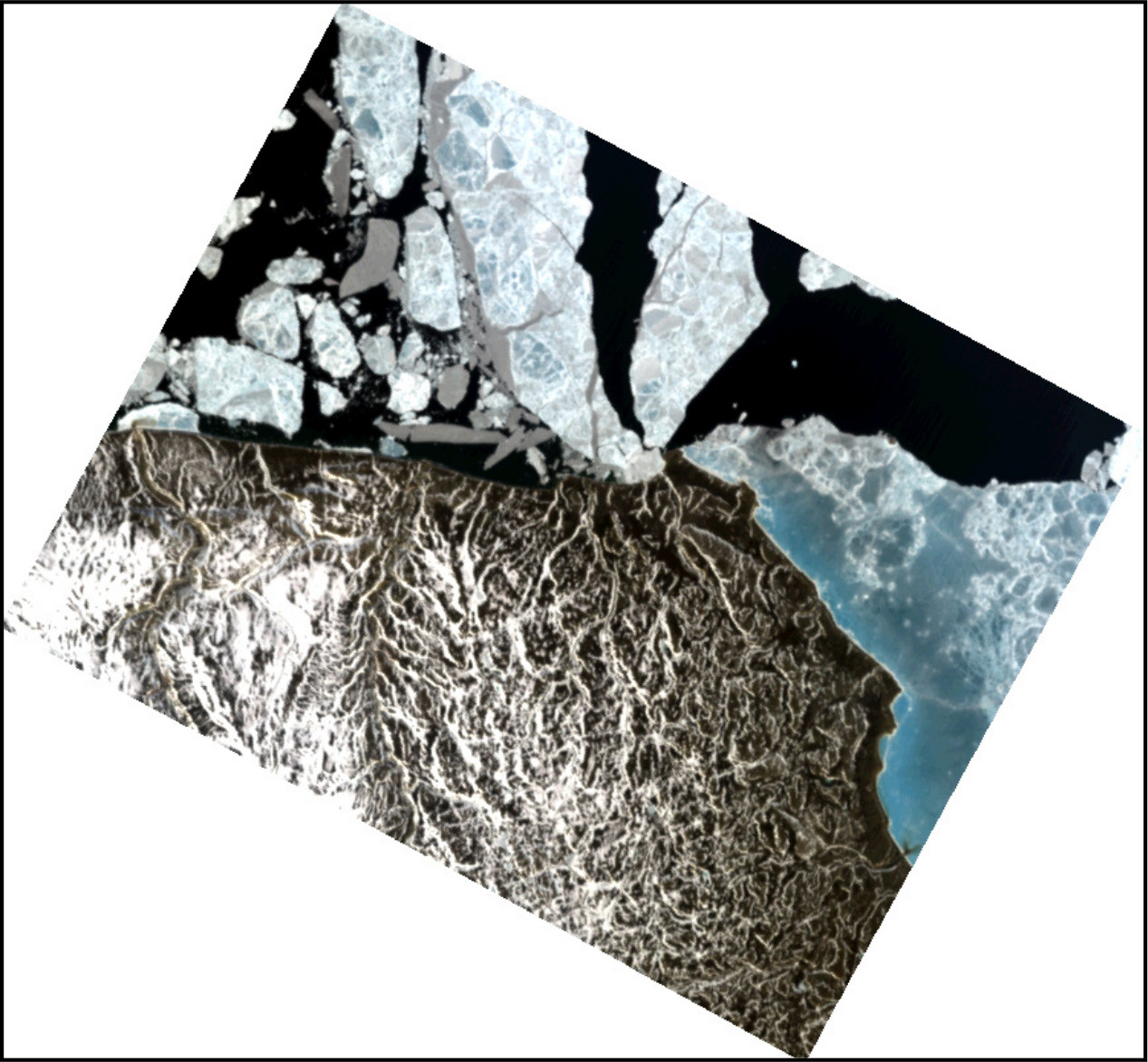

:::: {align="center" style="margin: 10px"} ::: {align="center" style="margin: 10px"} Tanager-1 RGB composite example{width="600" height="600" border="0"}\ Figure: Tanager-1 RGB composite generated with i.hyper.import\ [Data source: Planet Labs - Open Data, CC-BY-4.0.]{.small} ::: ::::

::: code

# Restore a native hyperspectral archive into the current mapset
i.hyper.import input=/data/hyperspectral_data.ihyper \
               product=ihyper \
               output=ignored_name

:::

For native archive restore, the archived map name is restored as-is and the output option is ignored.

SEE ALSO

EnMAP Example Data Products, Tanager Core Imagery, i.hyper.preproc, i.hyper.metadata, i.hyper.explore, i.hyper.composite, i.hyper.export, r3.stats, r3.univar

DEPENDENCIES

  • NumPy -- Core numerical operations and array manipulation.
  • h5py -- Interface for reading and writing .h5 (HDF5) hyperspectral data products such as PRISMA and Tanager.
  • pyproj -- Coordinate reference system and geospatial transformation library.

AUTHORS

Alen Mangafić and Tomaž Žagar, Geodetic Institute of Slovenia
