wxGUI Vector Network Analysis Tool
DESCRIPTION
Vector Network Analysis Tool is graphical front-end for v.net*
modules. It allows perform network analysis directly in
wxGUI without need to use command line. The tool can be
launched from Layer Manager menu Vector → Network analysis → Vector
network analysis tool or from Map Display toolbar Analyse map → Vector
network analysis tool .

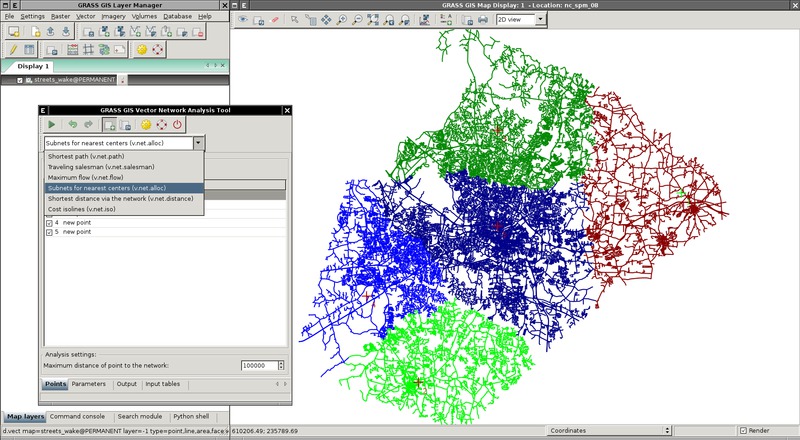

Subsets for nearest centers (v.net.alloc)
Vector Network Analysis Tool currently allows you to:
- perform these network analyses:
- Shortest path (v.net.path)
- Salesman (v.net.salesman)
- Flow (v.net.flow)
- Allocate subnets for nearest centers (v.net.alloc)
- Steiner tree for the network and given terminals (v.net.distance)
- Splits net by cost isolines (v.net.iso)
- show and set all data needed for the analysis (points, attribute tables, compute costs)
- show analysis results (maps and it's attribute tables)
- snapping to nodes
- browse previous analysis results
NOTES
The tool is split into tabs. Every tab represents some functionality:
Parameters tab
It is used for setting vector map and it's layer on which analysis will
be done. Also it is possible to set columns with cost values from
attribute table connected to particular layer.
Points tab
It manages points, which are used for analysis.
Output tab
There is a output console, which shows information about running
analysis.
Input tables tab
When existing vector map and it's existing layers are set in
Parameters tab, this tab is dynamically added. It shows attribute
tables of node and arc layers, which were chosen for analysis. It is
also possible to compute cost values in this tab. This can be done by
right mouse button click on column label. Then from pop-up menu choose
Add column, where new column for cost values can be created. After
that by right mouse button click on the added column label can be chosen
item Field calculator. This tool computes cost values.
Result tables tab
The result of vector network analysis is always a vector map. Some
vector network analysis results can also include attribute tables. If
such a table is connected to the result map, this tab is shown and with
it you can browse the data.
KNOWN ISSUES
When some change is done in layer tree of Map Display, temporary vector map representing result of analysis is not rendered (use Show result button in toolbar to render it again).
SEE ALSO
See list of vector network modules.
See also the user wiki page including video tutorial.
