r.surf.gauss

Generates a raster map using gaussian random number generator.

Mean and standard deviation of gaussian deviates can be expressed by the user.

r.surf.gauss output=name [mean=float] [sigma=float] [seed=integer] [--overwrite] [--verbose] [--quiet] [--qq] [--ui]

Example:

r.surf.gauss output=name

grass.script.run_command("r.surf.gauss", output, mean=0.0, sigma=1.0, seed=None, overwrite=None, verbose=None, quiet=None, superquiet=None)

Example:

gs.run_command("r.surf.gauss", output="name")

grass.tools.Tools.r_surf_gauss(output, mean=0.0, sigma=1.0, seed=None, overwrite=None, verbose=None, quiet=None, superquiet=None)

Example:

tools = Tools()
tools.r_surf_gauss(output="name")

This grass.tools API is experimental in version 8.5 and expected to be stable in version 8.6.

Parameters

output=name [required]
    Name for output raster map
mean=float
    Distribution mean
    Default: 0.0
sigma=float
    Standard deviation
    Default: 1.0
seed=integer
    Seed value for the random number generator
    Using the same seed ensures identical results, while a randomly generated seed produces different outcomes in each run.
--overwrite
    Allow output files to overwrite existing files
--help
    Print usage summary
--verbose
    Verbose module output
--quiet
    Quiet module output
--qq
    Very quiet module output
--ui
    Force launching GUI dialog

output : str, required
    Name for output raster map
    Used as: output, raster, name
mean : float, optional
    Distribution mean
    Default: 0.0
sigma : float, optional
    Standard deviation
    Default: 1.0
seed : int, optional
    Seed value for the random number generator
    Using the same seed ensures identical results, while a randomly generated seed produces different outcomes in each run.
overwrite : bool, optional
    Allow output files to overwrite existing files
    Default: None
verbose : bool, optional
    Verbose module output
    Default: None
quiet : bool, optional
    Quiet module output
    Default: None
superquiet : bool, optional
    Very quiet module output
    Default: None

output : str | type(np.ndarray) | type(np.array) | type(gs.array.array), required
    Name for output raster map
    Used as: output, raster, name
mean : float, optional
    Distribution mean
    Default: 0.0
sigma : float, optional
    Standard deviation
    Default: 1.0
seed : int, optional
    Seed value for the random number generator
    Using the same seed ensures identical results, while a randomly generated seed produces different outcomes in each run.
overwrite : bool, optional
    Allow output files to overwrite existing files
    Default: None
verbose : bool, optional
    Verbose module output
    Default: None
quiet : bool, optional
    Quiet module output
    Default: None
superquiet : bool, optional
    Very quiet module output
    Default: None

Returns:

result : grass.tools.support.ToolResult | np.ndarray | tuple[np.ndarray] | None
If the tool produces text as standard output, a ToolResult object will be returned. Otherwise, None will be returned. If an array type (e.g., np.ndarray) is used for one of the raster outputs, the result will be an array and will have the shape corresponding to the computational region. If an array type is used for more than one raster output, the result will be a tuple of arrays.

Raises:

grass.tools.ToolError: When the tool ended with an error.

DESCRIPTION

r.surf.gauss produces a raster map of Gaussian deviates whose mean and standard deviation can be expressed by the user. It uses a Gaussian random number generator. It is essentially the same as r.surf.random, but uses a Gaussian random number generator instead.

EXAMPLE

g.region -p n=228500 s=215000 w=630000 e=645000 res=10
r.surf.gauss out=gauss mean=0 sigma=10

# check result
r.univar gauss

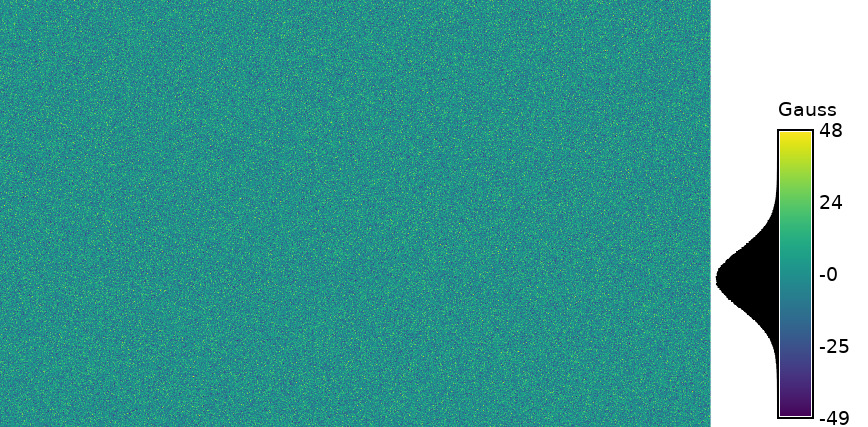

r.surf.gauss example (mean: 0; sigma: 10)
Figure: Random Gaussian surface example (mean: 0; sigma: 10)

With the histogram tool the cell values versus count can be shown.

r.surf.gauss example histogram (mean: 0; sigma: 10)
Figure: Histogram of random Gaussian surface example (mean: 0; sigma: 10)

SEE ALSO

r.surf.contour, r.surf.fractal, r.surf.idw, r.surf.random, v.surf.rst

AUTHOR

Jo Wood, ASSIST's home

SOURCE CODE

Available at: r.surf.gauss source code (history)
Latest change: Thursday Mar 06 19:23:31 2025 in commit 5fd4234
